2009-2017 Toyota Corolla E140 E170 Coilover Shock Absorbers

➤【Fitment】：

4Pcs Coilover Shock Absorbers Struts Compatible with :

■Compatible for 2009-2010 TOYOTA COROLLA (E140) AZE141L XRS

■Compatible for 2009-2013TOYOTA COROLLA (E140/E160) ZRE142L LE

■Compatible for 2009-2013 TOYOTA COROLLA (E150/E170) ZRE172L all ■

Compatible for 2009-2014 TOYOTA MATRIX (E140) LE

⚠️⚠️⚠️Before purchase this Coilover Shock Absorbers Struts, please use the year/make/model drop down bar confirm the compatibility or description to confirm the compatibility.

➤【SPEICIFICATION】:

■Top mounts: Pillow ball top mount with camber plate front, standard rubber top mount rear

■Quantity: Complete coil overs 2 front and 2 rear, a pair of wrenches for height adjustment

■Spring rate Front: 10 kg/mm 560 lbs/in)

■Spring rate Rear: 6 kg/mm (336 lbs/in)

■Spring length Front: 200 mm

■Spring length Rear: 160 mm

■Coilover overall length Front: 360mm -455mm

■Coilover overall length Rear: 313mm - 370mm

■Damping: 24 levels rebound damping adjustable

■Adjustable Height: Yes, lowering 1" to 3"

■Shock Type: Twin tube

■Spring Preload: 7-10 mm

■Surface Materials: Aluminum, Steel

■Color: Purple

■Warranty: 2-year warranty for any manufacturing defect

➤【What You’ll Get】：

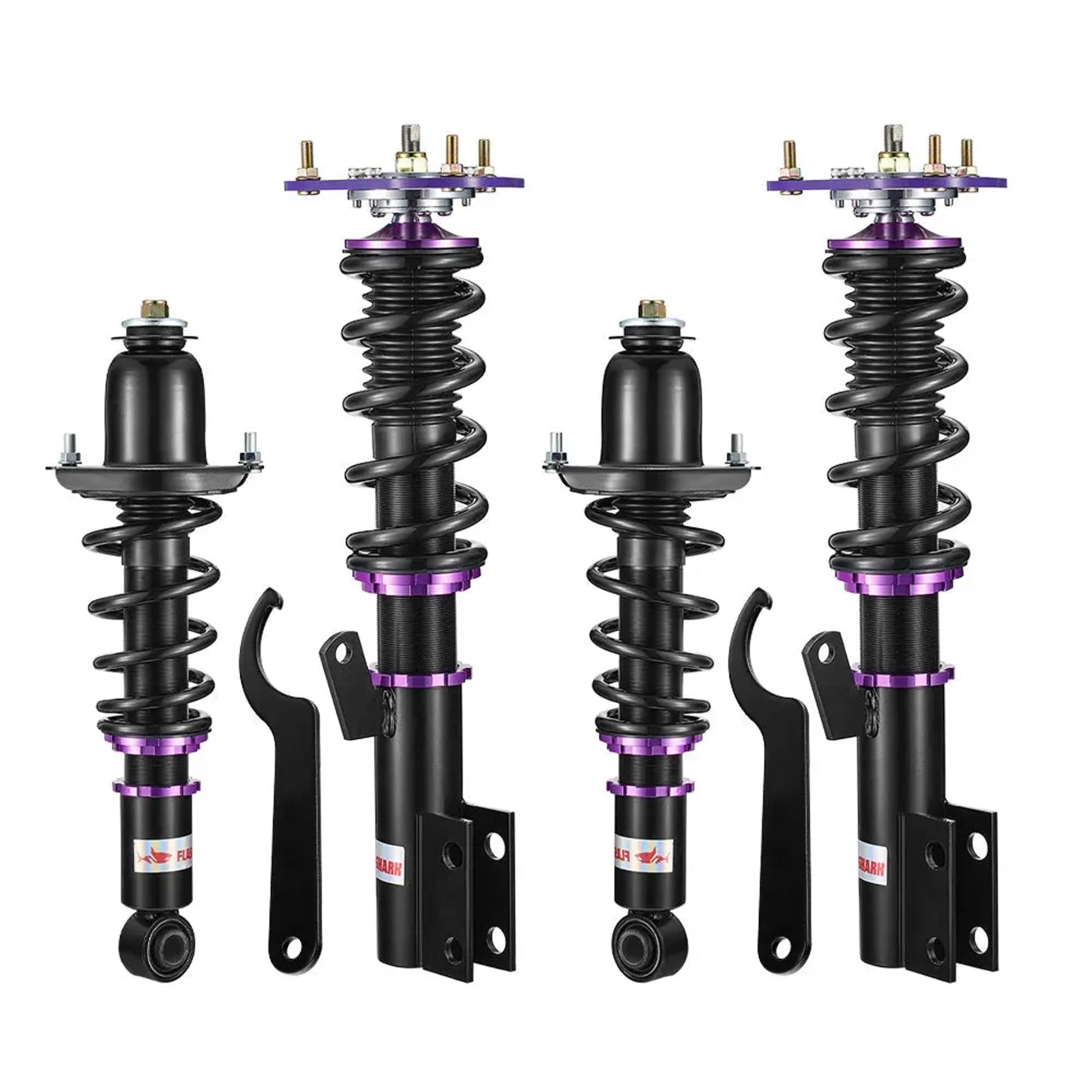

■2 x Front Coilover

■2 x Rear Coilover

■2 x Stainless Steel Wrench

⚠️⚠️⚠️➤Notice：

- No instruction included; Professional installation; alignment suggested. - The coilover will lower your ride height, if you do not need to lower it, please purchase a normal shock absorber

➤ADJUSTABLE HEIGHT:

■Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

■Separate height adjustment does not affect damper stroke.

■Height can be adjusted with coilovers installed on the vehicle.
