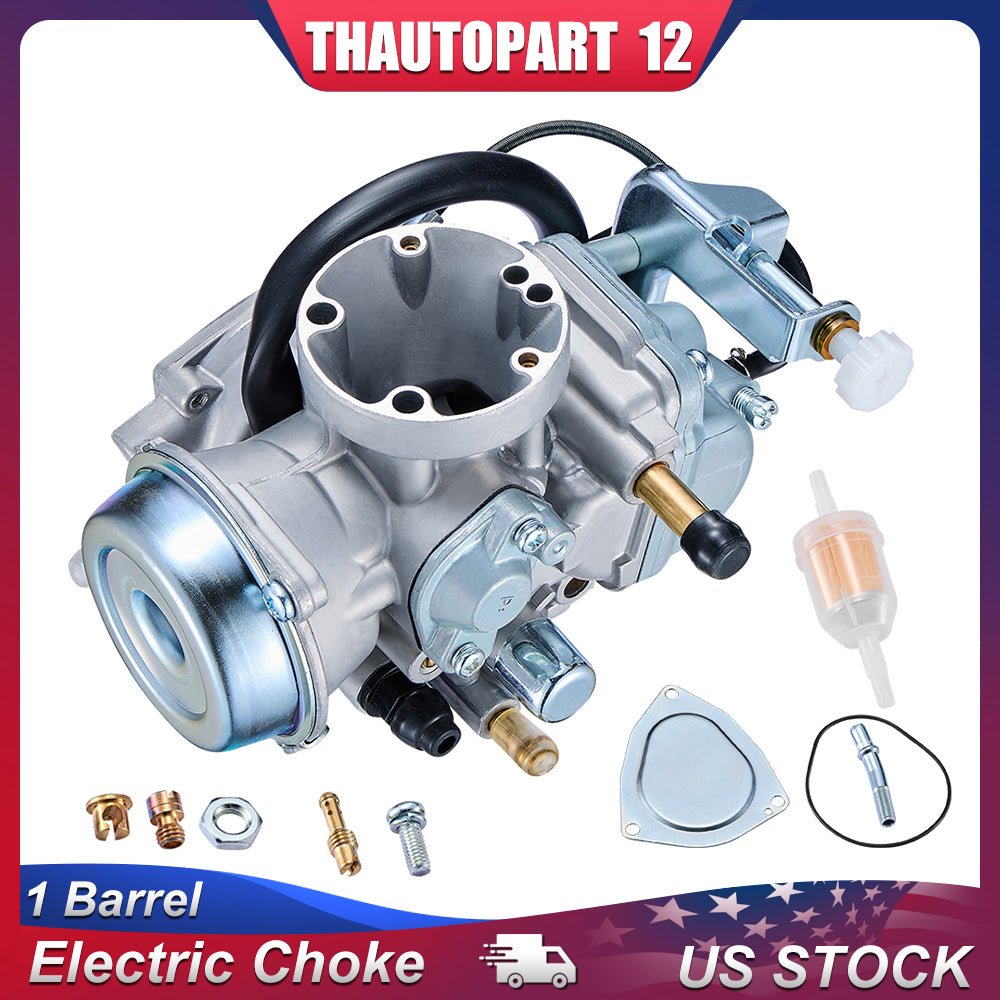

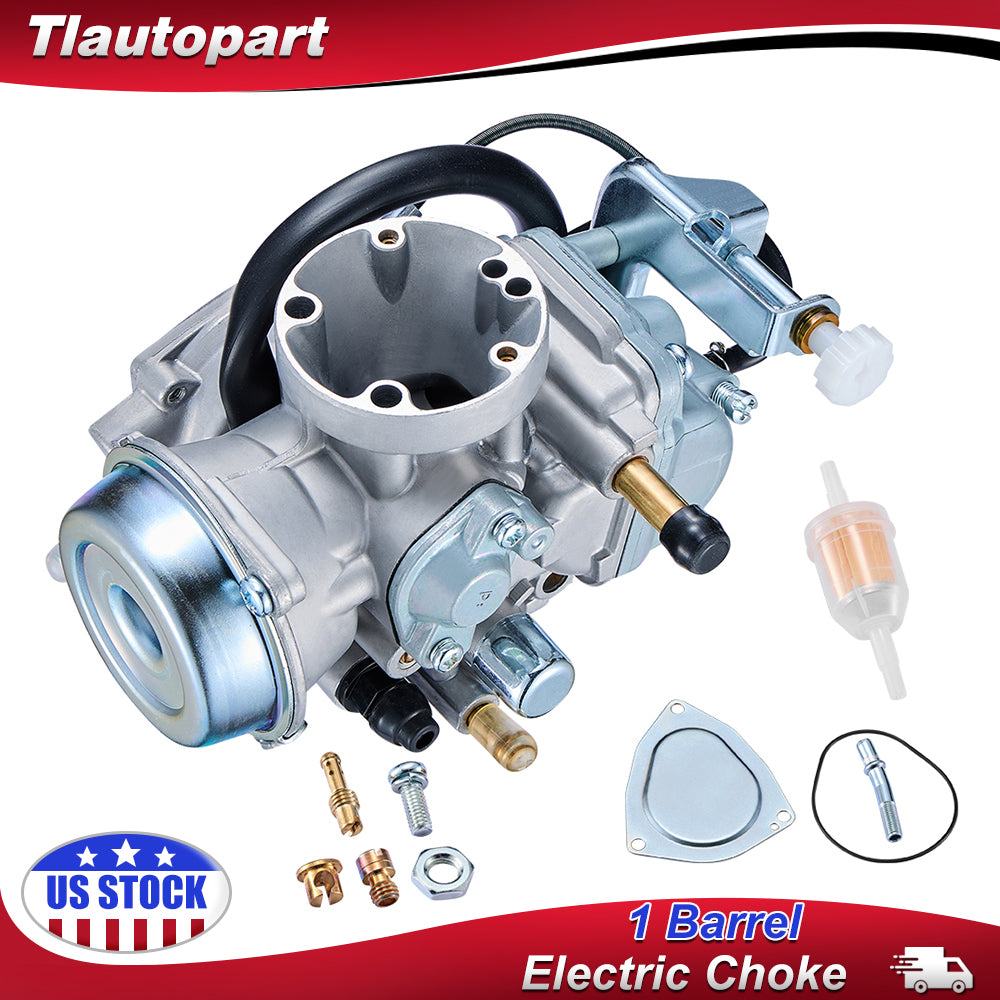

SPEEDWOW 1 Barrel Carburetor Carb Compatible with Suzuki LT-F250 LTF250 Ozark 250 2x4 2002 2003 2004 2005 2006-2014 Carburetor Kit Electric Choke

➤【Applicable Vehicle】：

■2003 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV

■2004 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV

■2005 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV

■2006 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV

■2007 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV

➤PLEASE NOTE:

Please compare your original carburetor with the picture to make sure the part fits your vehicle

If you have any questions about our products, please ask us for help

■Carburetor replaces for 2003 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV, 2004 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV

■Compatible with 2005 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV, 2006 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV, 2007 Suzuki LTZ400 LTZ 400 2x4 Quadsport ATV

⚠️⚠️⚠️Please add your car ( Year/Make/Model and the OE number of the replacement parts. ) to Walmart's garage to confirm!

➤Our CARBURETOR Competitive Advantage:

■1. Powerful power, stable idle speed

■2. Save fuel consumption

■3. Powerful acceleration

■4. No tuning required

★HIGH PRECISION MACHINING

■Made by machining centre, stable size and precise hole position

★EXCELLENT MATERIAL

■Made of zinc alloy / durable

★FINE WORKMANSHIP

■Polished with care, smooth and free of flying edges

■Add 5~10% horsepower for better Engine performance; Mounting gasket & seal included

■Compact size, less fuel consumption, energy saving and economical; Efficiently improve Throttle response,maintain near stock Fuel mileage

■Made of heavy duty gray metal construction, high quality and durable

➤Compatibility: Matching with various intake manifolds, include Performer EPS, Performer RPM, RPM Air Gap, Torker Ⅱ and other similar designs.

➤Design: This carburetor adopts two-piece all aluminum structure, with lower working temperature and less warpage. Can works with manual or electric choke carb.

➤Function: For small and some large engines to get good street performance and fuel economy. It is not affected by engine flashback that means there is no power valve to blow out, and the rod can be replaced in a few seconds without removing the carburetor.

➤CARBURETOR ASSEMBLY:

■1. Assemble the upper body and lower body of the carburetor.

Care should be taken to install the gasket when operating.

■2. Install the idle speed fluctuation compensator.

Care should be taken to install the gasket and.

Shaped ring to prevent air leakage and loss of compensation.

■3. Install the idle speed shut-off valve.

★First, put the needle valve and spring into the carburetor upper body hole, and set a good seal on the idle speed shut-off valve.

★Then install it to the carburetor and tighten it.

■4. Install the carburetor small throat and each quantity hole.

■5. Install the float and adjust the oil level of the float chamber.

■6. Connect the upper and lower body of the carburetor, install the damper puller and vacuum hose, connect the fast idle speed puller and accelerator pump piston, etc.

■7. Adjust the throttle opening, fast idle mechanism and engine idle speed.

■8. Adjustment of the operating mechanism, throttle manipulation mechanism, so that the throttle lever reaches the fully open throttle position.
