SPEEDWOW 14 Inch Electric Radiator Cooling Fan 12V 160W Mount Kit 2400+CFM Push Pull Universal Slim Fan

■14 inch reversible 12 volt electric cooling fan.

■Universal fit for hot rods, classic engines and modern vehicles.

■Powerful 80 watt motor will keep your engine cool.

■Configured as an air puller out of the box.

■Blade and wiring can be reversed to make the fan an air pusher.

■For radiators, oil coolers, transmission coolers, condensers and more.

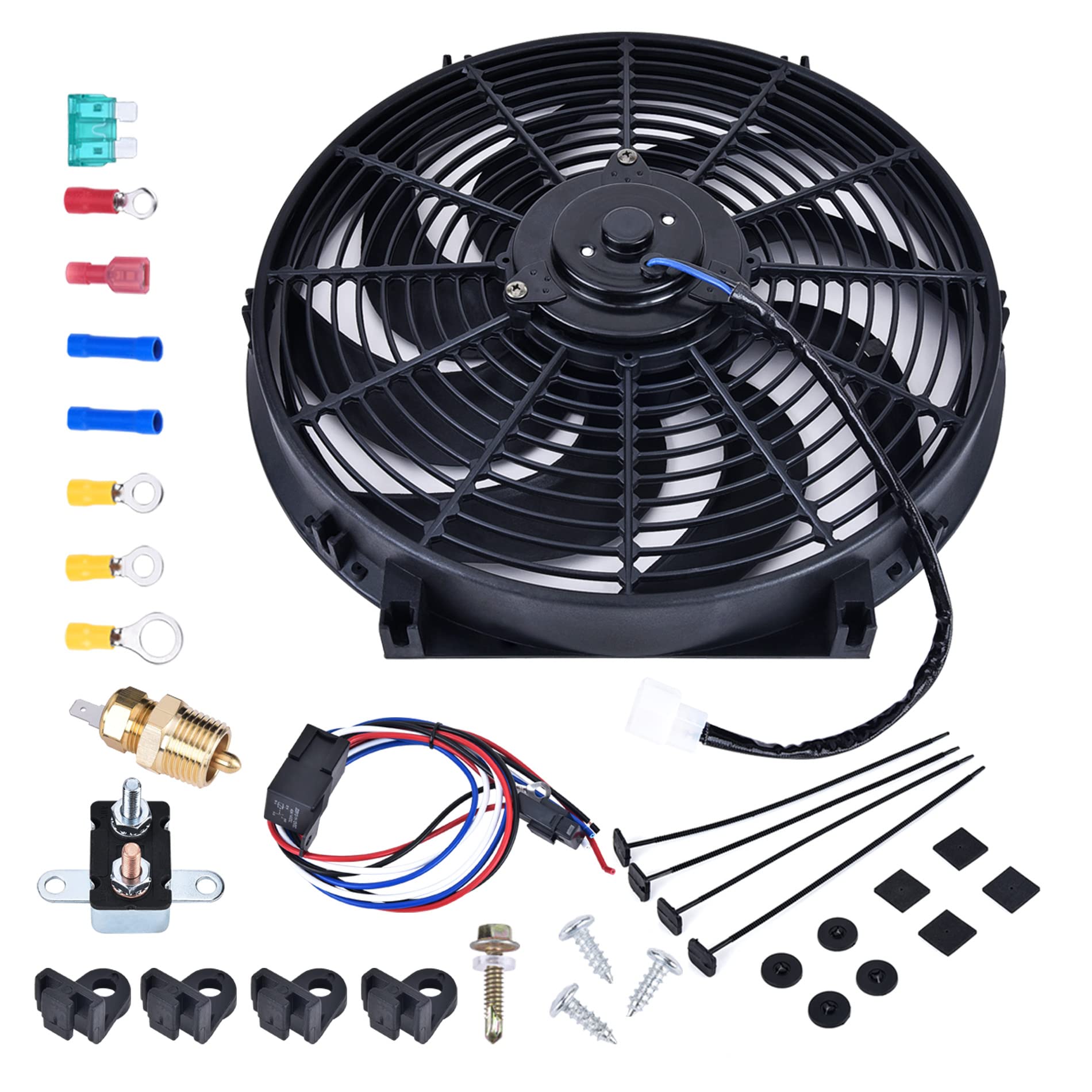

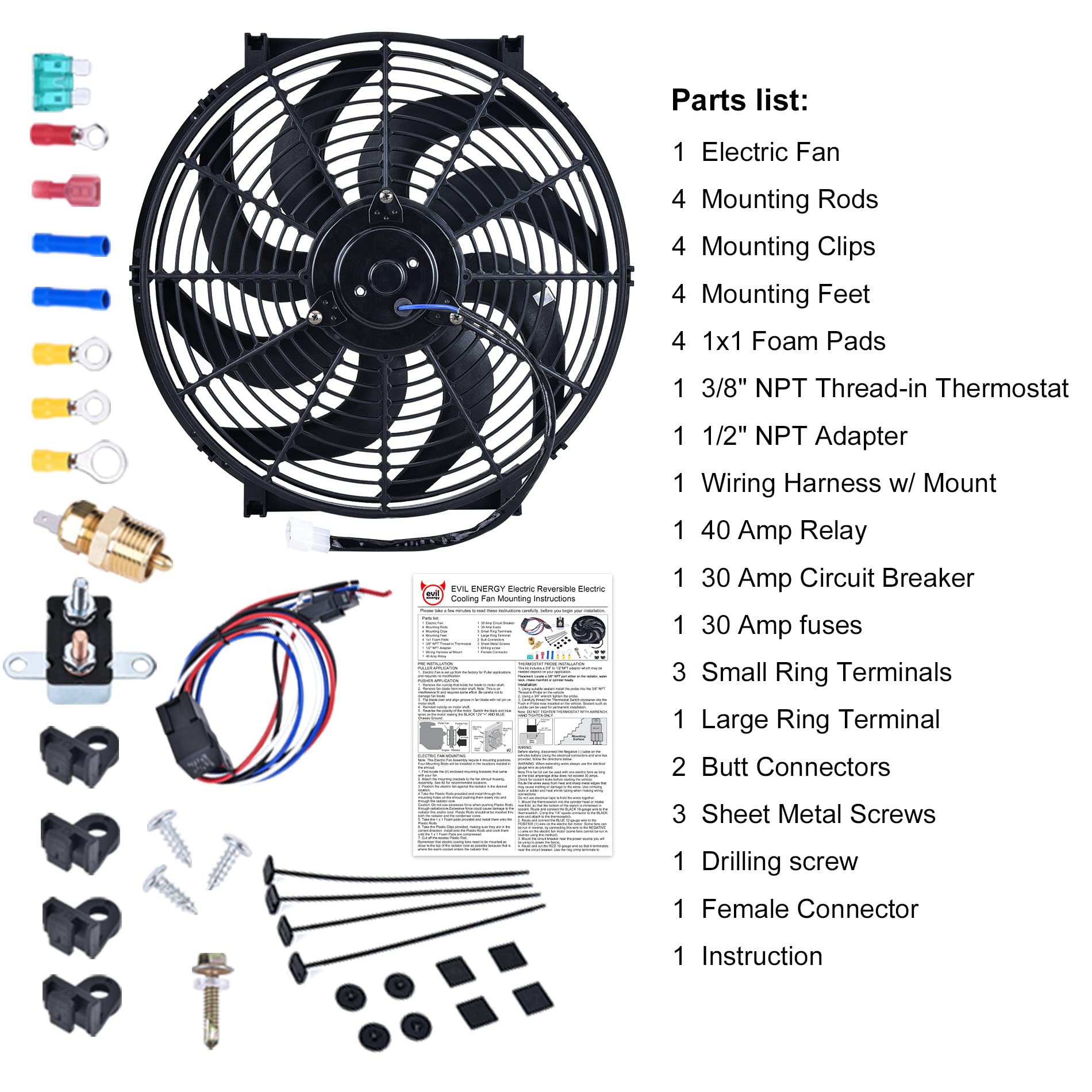

■Includes mounting feet attachments and tie strap kit.

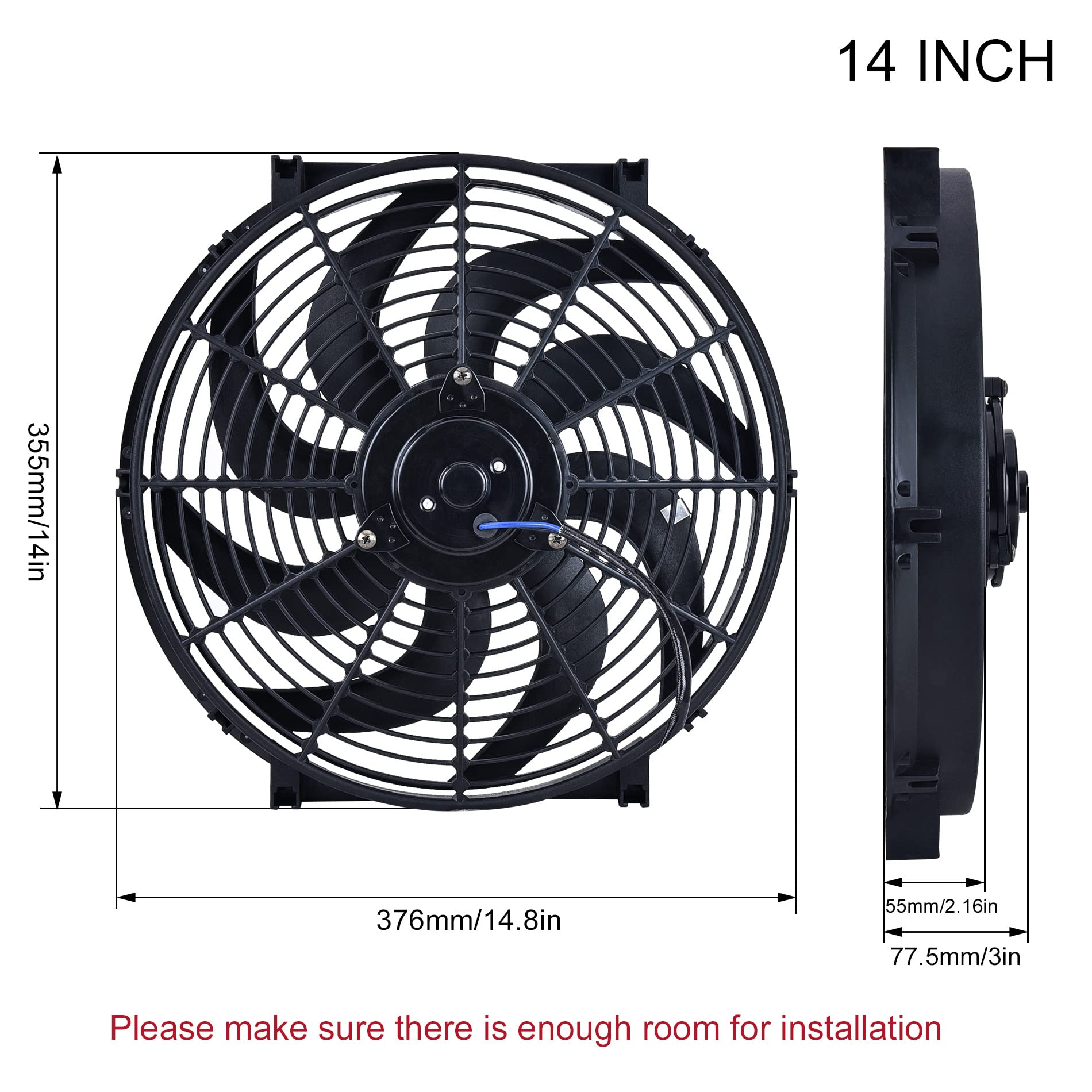

■Blade Size： 14 Inch

■Blade Type： Curved

■Motor Size：160 Watts

■CFM Rating：2400

■Amp Draw：15 Amps

■Compatible devices: Automobile radiators

■Material: Polycarbonate

■Maximum rotational Speed: 2400 RPM

■Air flow capacity: 1.8E+3 Cubic Feet Per Minute

■Power Connector Type: 3-Pin

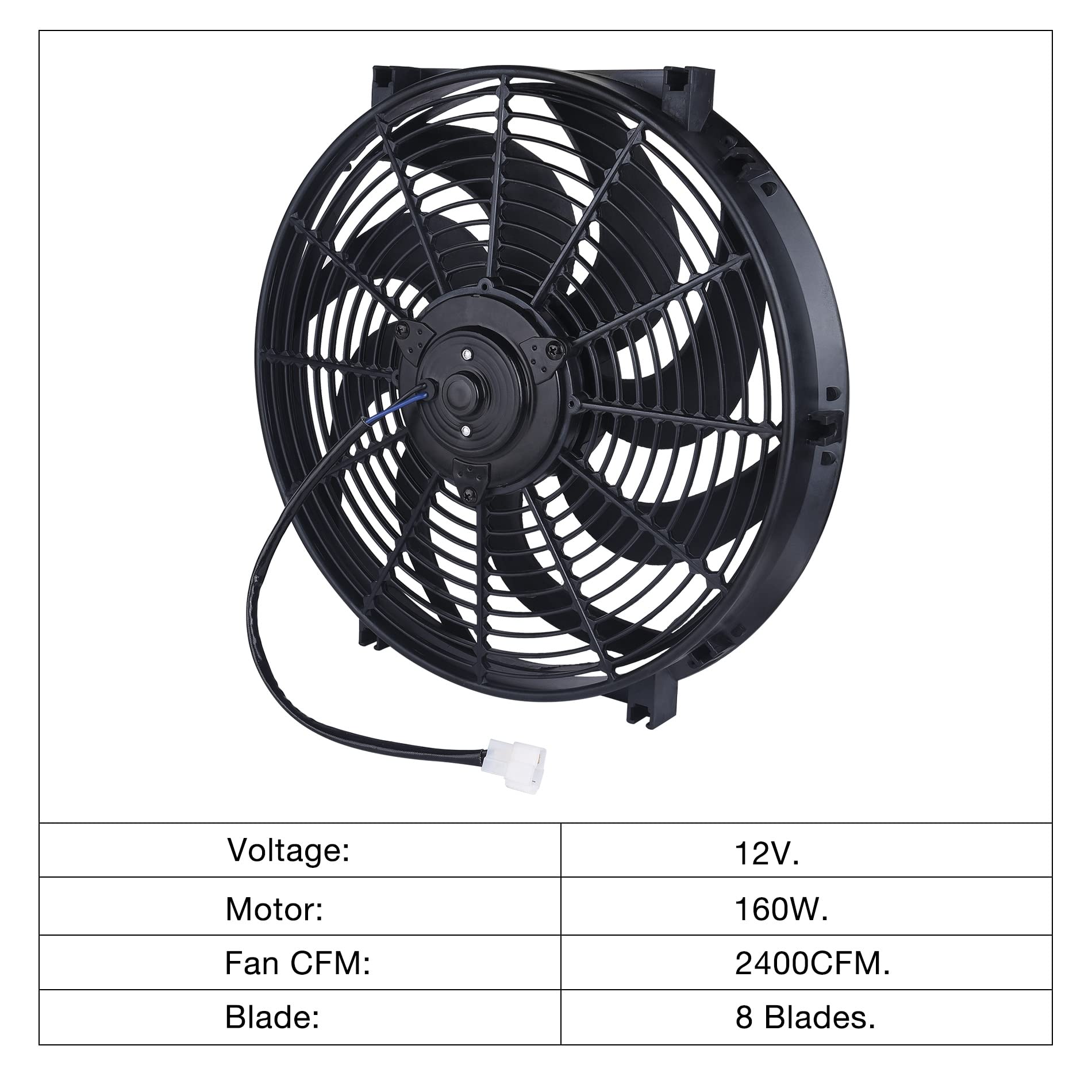

■Voltage:12 Volts

■Wattage:160 watts

■Cooling method: Water

■Compatible Devices: Desktop

■Material: Polycarbonate

■Maximum Rotational Speed: 2400 RPM

■Air flow capacity: 2400 Cubic Feet Per Minute

➤Thermostat Kit:

■Universal fit for any automotive application.

■Activates by grounding electric fans at preset temperature.

■180'F turn-on temperature, 165'F turn-off temperature.

■3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

■Probe typically threads into radiator, water outlet hose or manifold.

➤Mode Introduction:

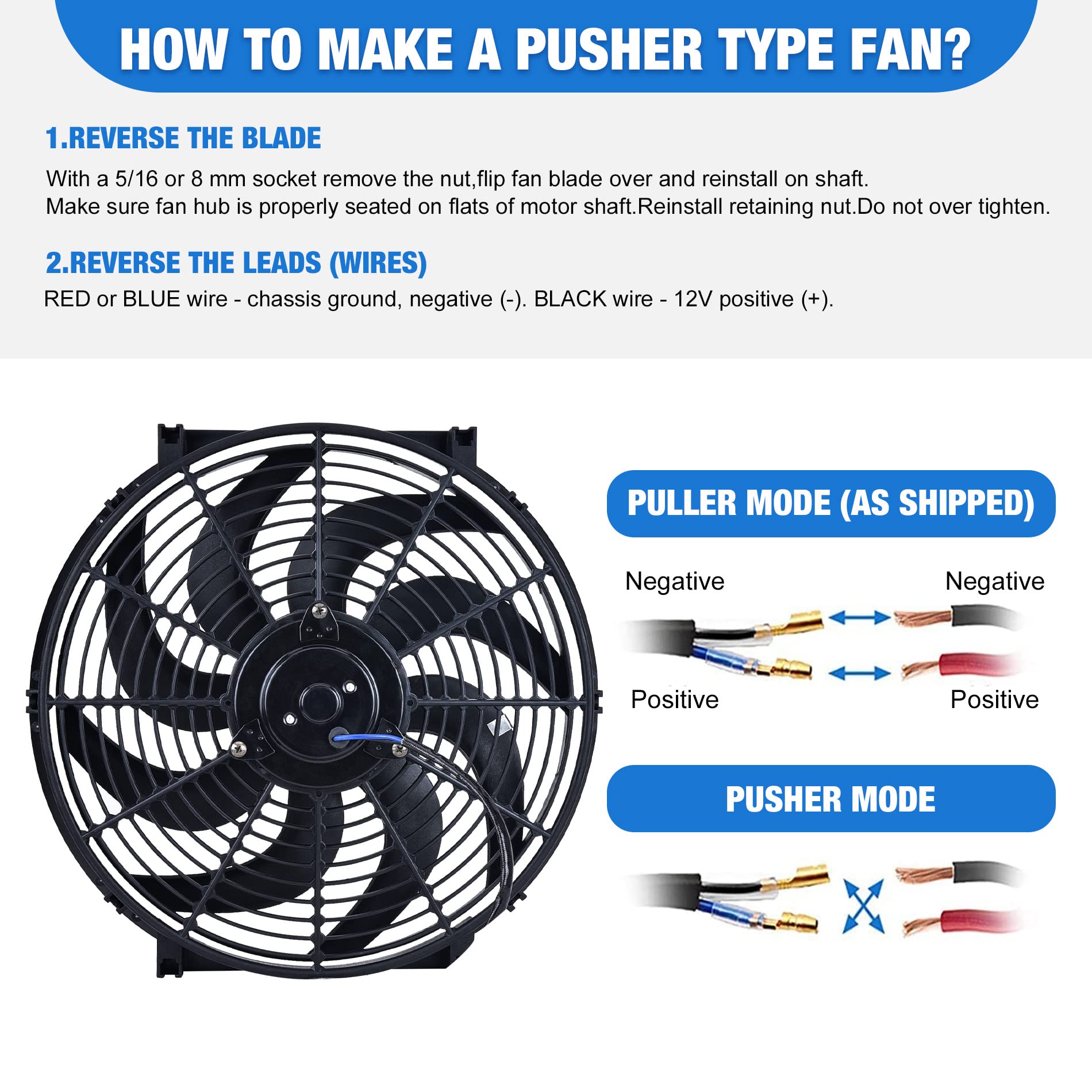

★PUSHER MODE

Pusher fans mount on the grill side (front) of the radiator core and push air through the radiator core. Fresh airflow enters through the grille, then is pushed through the radiator core, and exits out the back side of the radiator. Pusher fans are used typically where is a limited amount of space for a properly sized puller fan.

★PULLER MODE

Puller fans mount on the engine side (back) of the radiator core and pull air through the radiator core. The fresh airflow is pulled through the grill then pulled through the core and exits out the back side of the radiator. Puller fans are the desired and most common way of mounting a fan when space is not a limitation between the front of the engine and the back of the radiator core.

➤Electric Radiator Cooling Fan:

■ Universal Fitment Replace your OEM Fan with the fan or use the fan mount kit to create custom cooling.

■Reversible These fans can be easily wired and installed as a pusher or a puller depending on what your build needs.

■Multiple Sizes Available in 12'' / 14'' / 16'' three Sizes, Mini motor's fans are perfect for any build.
