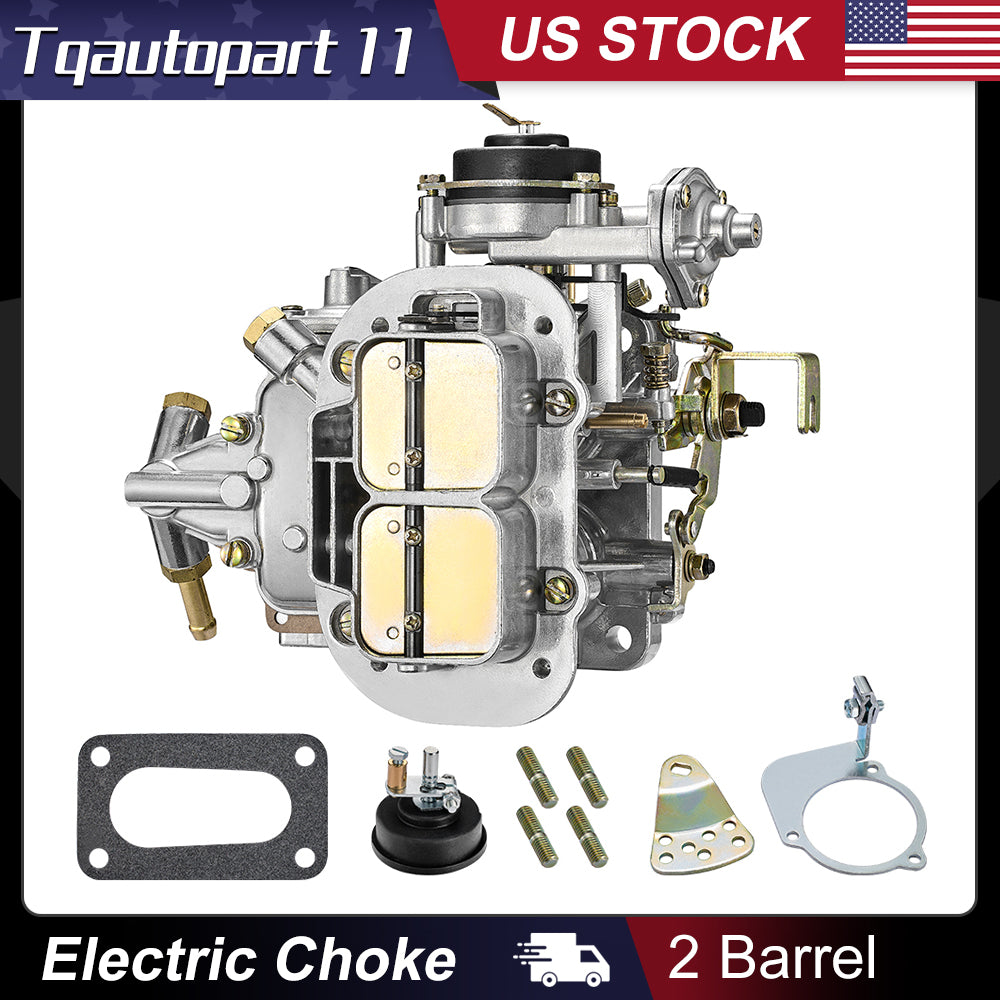

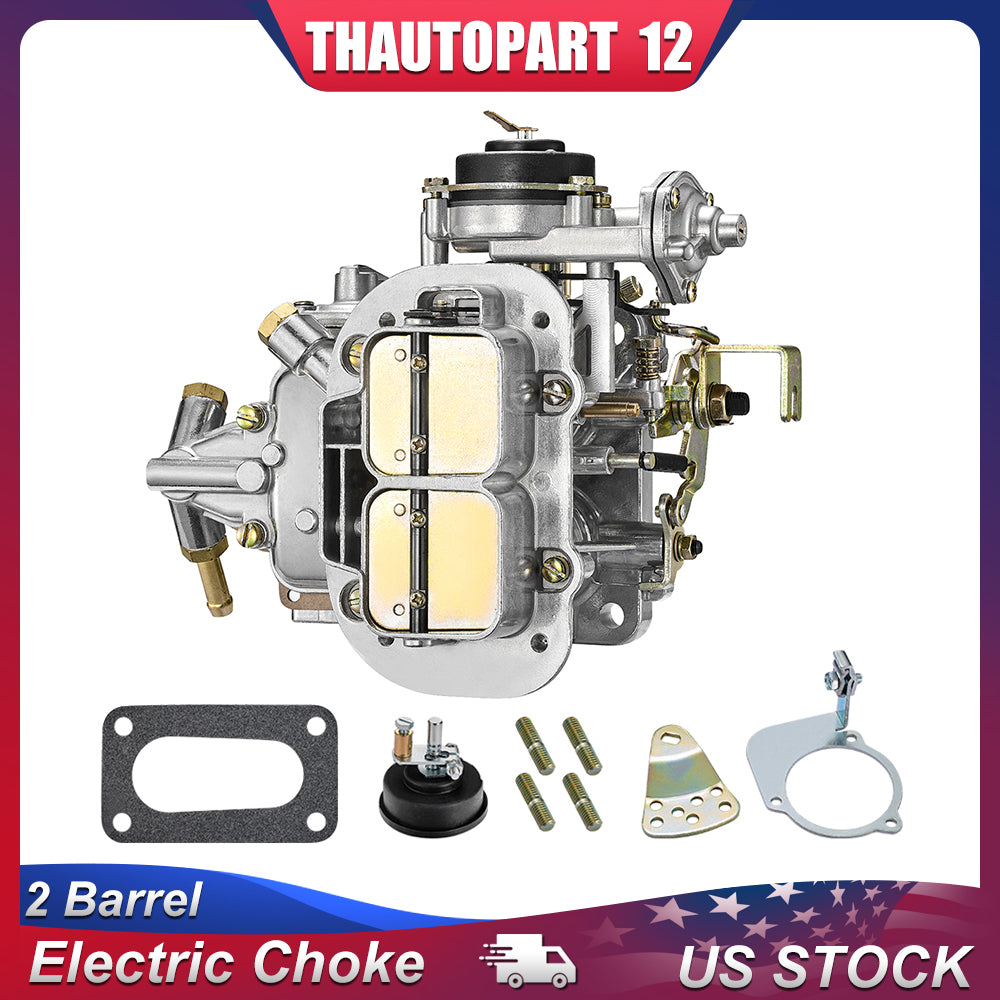

SPEEDWOW 22680033B 2 Barrel Carburetor CARB Compatible with Weber DGV DGAV DGEV 32 36 Toyota Pickup Celica Corona 20R 22R Datsun 510 610 620 Mazda B2000 B2200 CJ5 CJ7 CJ8 Nissan Sentra 32x36 Electric Choke

➤Specifications:

■Type: Electric Choke

■Primary Venturi: φ26mm

■Secondary Venturi: φ10.5mm

■Primary Auxiliary Venturi: φ27mm

■Secondary Auxiliary Venturi: φ10.5mm

■Primary Main Jet: 1.4mm

■Secondary Main Jet: 1.4mm

■Primary Air Corrector Jet: 1.7mm

■Secondary Air Corrector Jet: 1.6mm

■Primary Emulsion Tube: F50

■Secondary Emulsion Tube: F50

■Primary idle Jet: 0.6mm

■Secondary Idle Jet: 0.5mm

■Pump Jet: φ0.6mm

■Needle Valve: 2.0mm

■Float Measurement: 47mmc

➤Package Include:

1x 32/36 Carburetor

➤CARBURETOR ASSEMBLY:

■1. Assemble the upper body and lower body of the carburetor.

Care should be taken to install the gasket when operating.

■2. Install the idle speed fluctuation compensator.

Care should be taken to install the gasket and.

Shaped ring to prevent air leakage and loss of compensation.

■3. Install the idle speed shut-off valve.

★First, put the needle valve and spring into the carburetor upper body hole, and set a good seal on the idle speed shut-off valve.

★Then install it to the carburetor and tighten it.

■4. Install the carburetor small throat and each quantity hole.

■5. Install the float and adjust the oil level of the float chamber.

■6. Connect the upper and lower body of the carburetor, install the damper puller and vacuum hose, connect the fast idle speed puller and accelerator pump piston, etc.

■7. Adjust the throttle opening, fast idle mechanism and engine idle speed.

■8. Adjustment of the operating mechanism, throttle manipulation mechanism, so that the throttle lever reaches the fully open throttle position.

⚠️⚠️⚠️➤Notice:

■1. Impurity in fuel may cause clogging in the carburetor, please use the clean fuel to ensure the carb work normally, please clean the automobile oil circuit and air filter before you install the carburetor

Please compare carefully the pictures provided to your part before buying.

■2. Please confirm your old part number matches up with one of the part numbers above

■3. Professional installation is highly recommended (No Instruction Included)
