SPEEDWOW 3 Inch Dual Manual Switch Electric Exhaust Cutout Valve

➤ Specifiction

• Manufacturer Part Number: FL2352H-2.25
• Type: Dissipative Muffler
• Material Type: 304 Stainless Steel Pipe & T6061 Aluminum Valve
• Item Weight: 6315g
• Mounting Position: Rear
• Special Features: Make Amazing Sound / add extra power
• Color: Metal Original color
• Warranty: 3 months in normal condition
• Size: 2.0/2.25/2.5/3 inch
• Fit: All 2.0/2.25/2.5/3 inch Inch Exhaust Pipe
• Pipe Thickness: 1.5mm
• Control: Manual Switch

➤Feature

■Pipings - Made of High - Quality T - 304 Stainless Steel with Computerized Mandrel - Bends for Strength and Durability

■Maximizing Smoothest High Exhaust Air Flow Rate

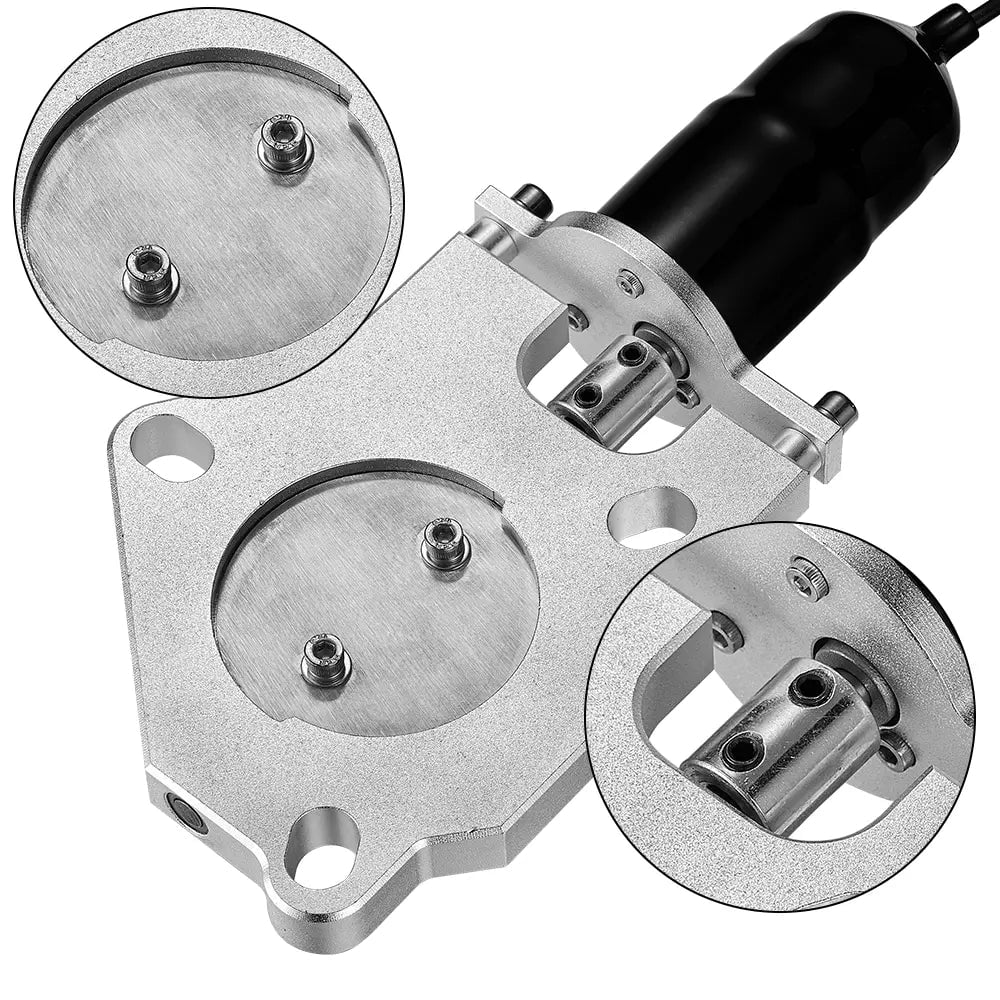

■Cutout Kit - Made of Lightweight CNC Machined Anodized T - 6061 Aircraft Aluminum Alloy

■High - Performance Racing Spec. Design

■Dyno Proven to Instantly Increases 10 - 20 Horsepower

■Aggressive Deep Sound while Ensures Smooth Exhaust Gas Flow

■Manual Controlled Exhaust Valves Outflow;

■Easy to Control the Exhaust Volume and Air Flow

■High Torque Electric Gear Motor Specifically Manufactured to Withstand High Temperature and Vibration

■TIG Welded CNC Machine Flange for Resistance against Pressure and Corrosion

■Increase Engine Output and Efficiency

■Inlet/ Major Piping Diameters: 2.25"

■100% Brand New

■Professional Installation is Highly Recommended (No Instruction Included)

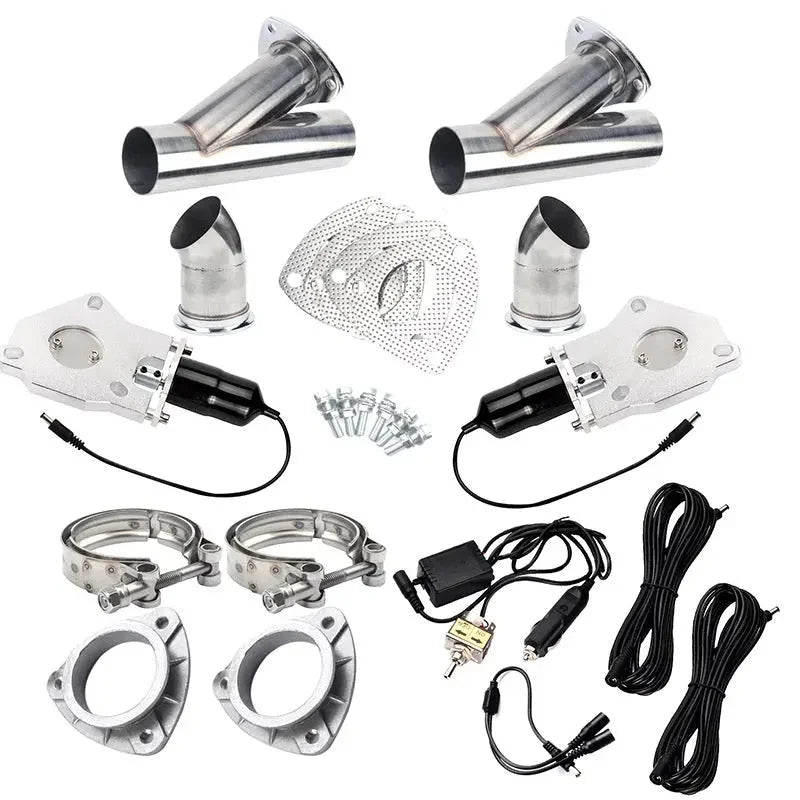

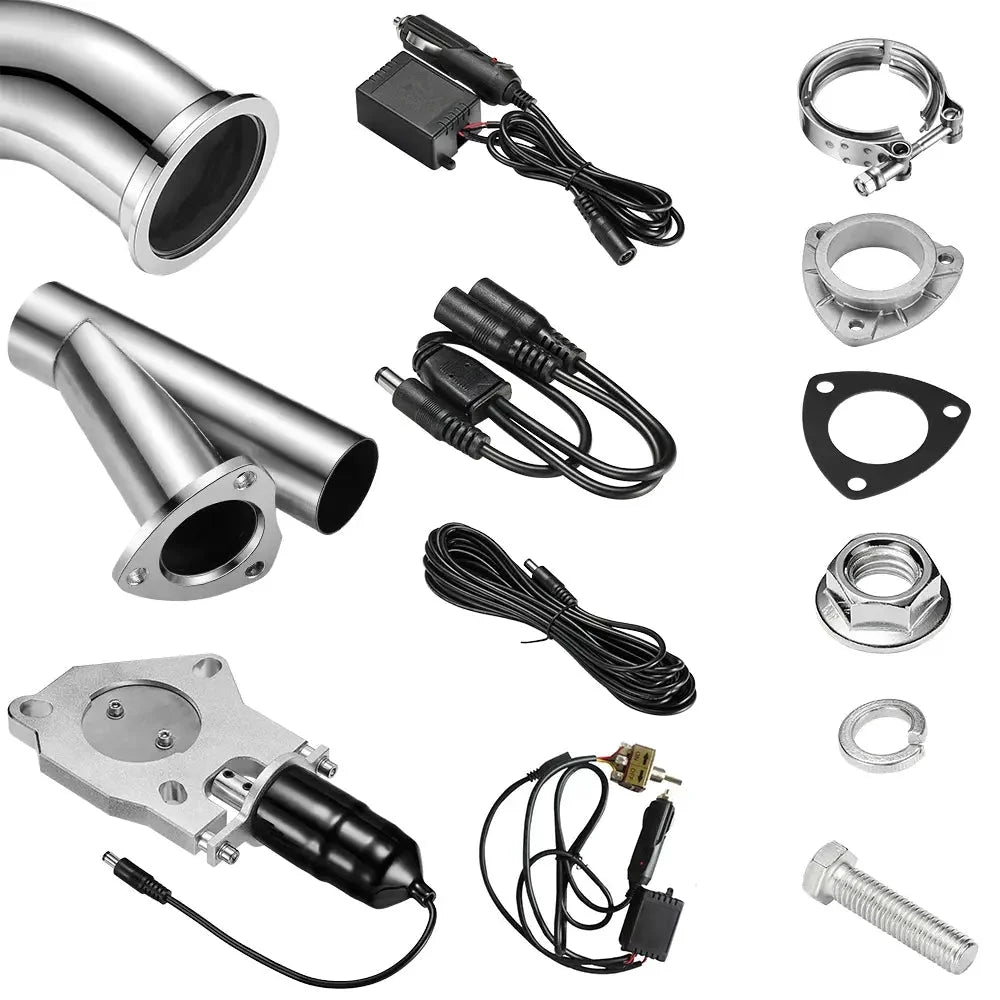

➤Package Includes:

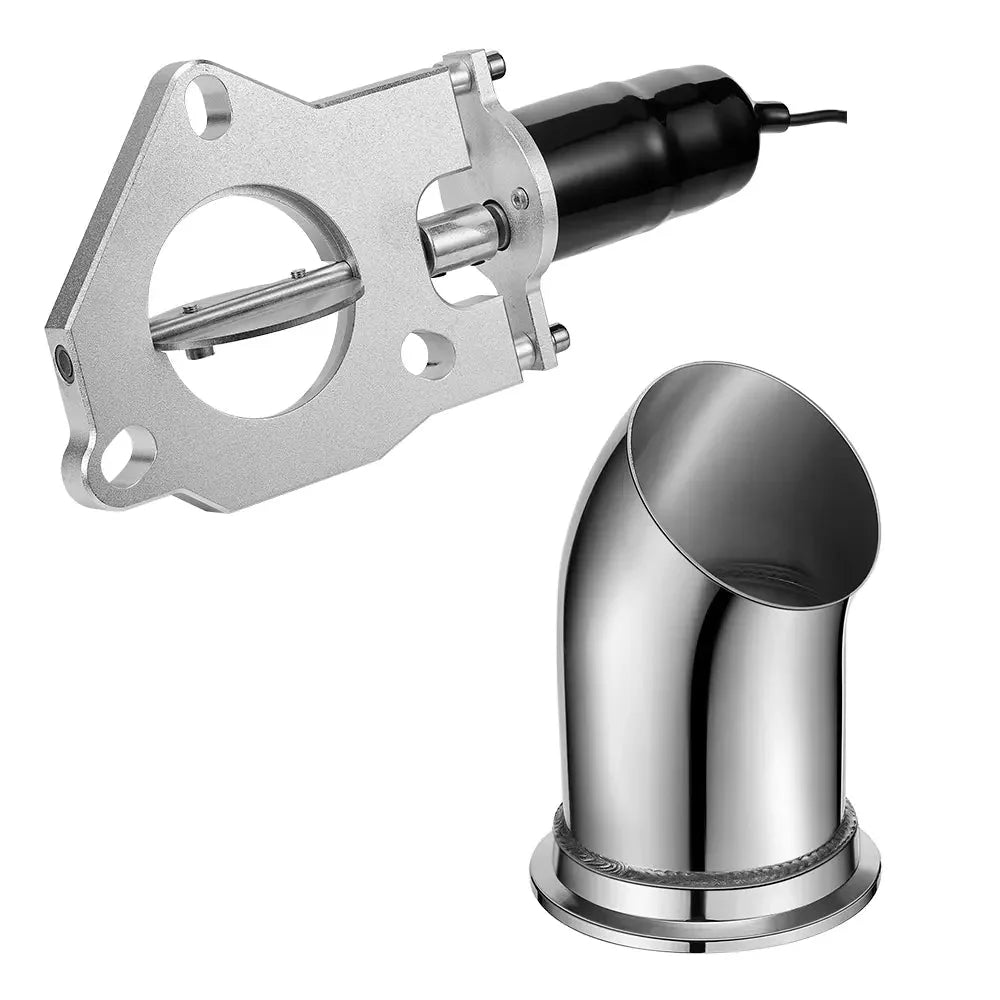

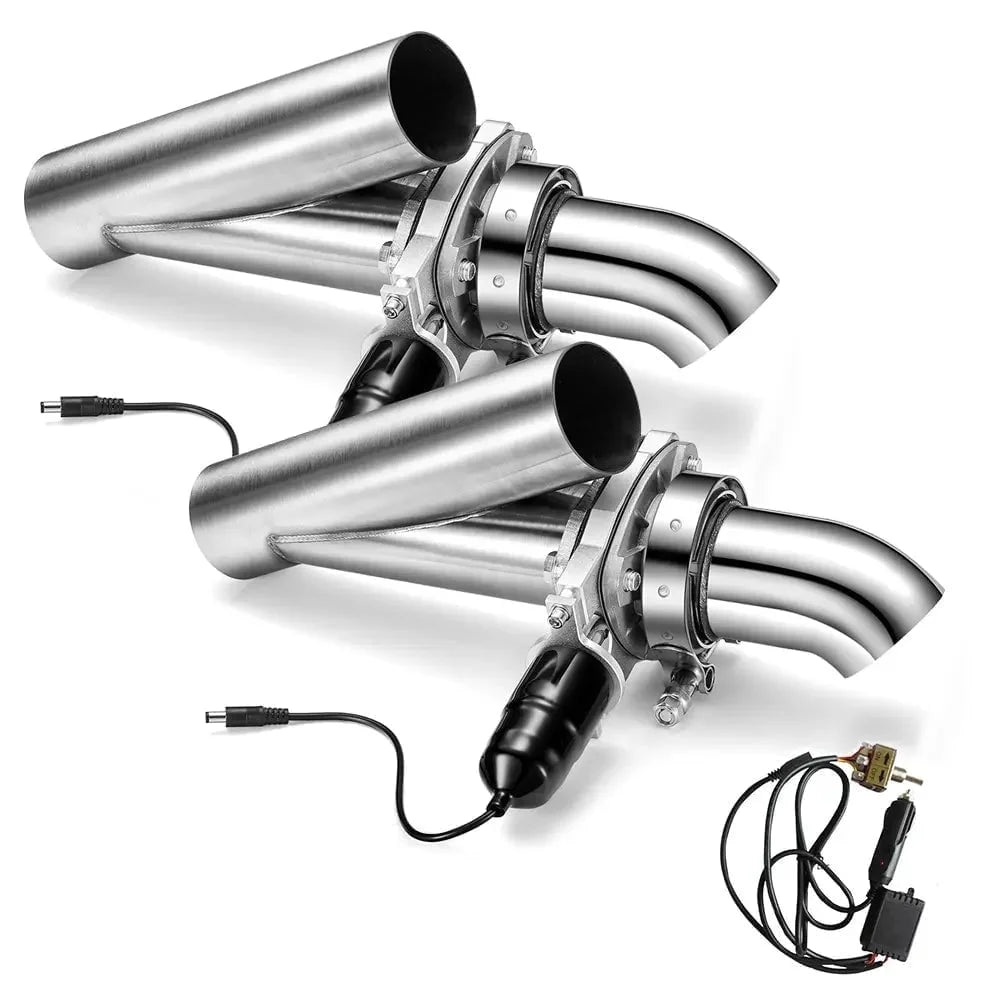

• 2 X Electric Exhaust Cut Out Kit with Gear Driven Motor
• 2 X Stainless Steel 10" Y - pipe
• 2 X 45 - Degree Stainless Steel Elbow Dump Pipe
• 1 X Toggle Switch
• 1 X Manual Switch Unit
• 1 X One to Two Control Wiring Hardness
• 2 X 12ft Wiring Harness

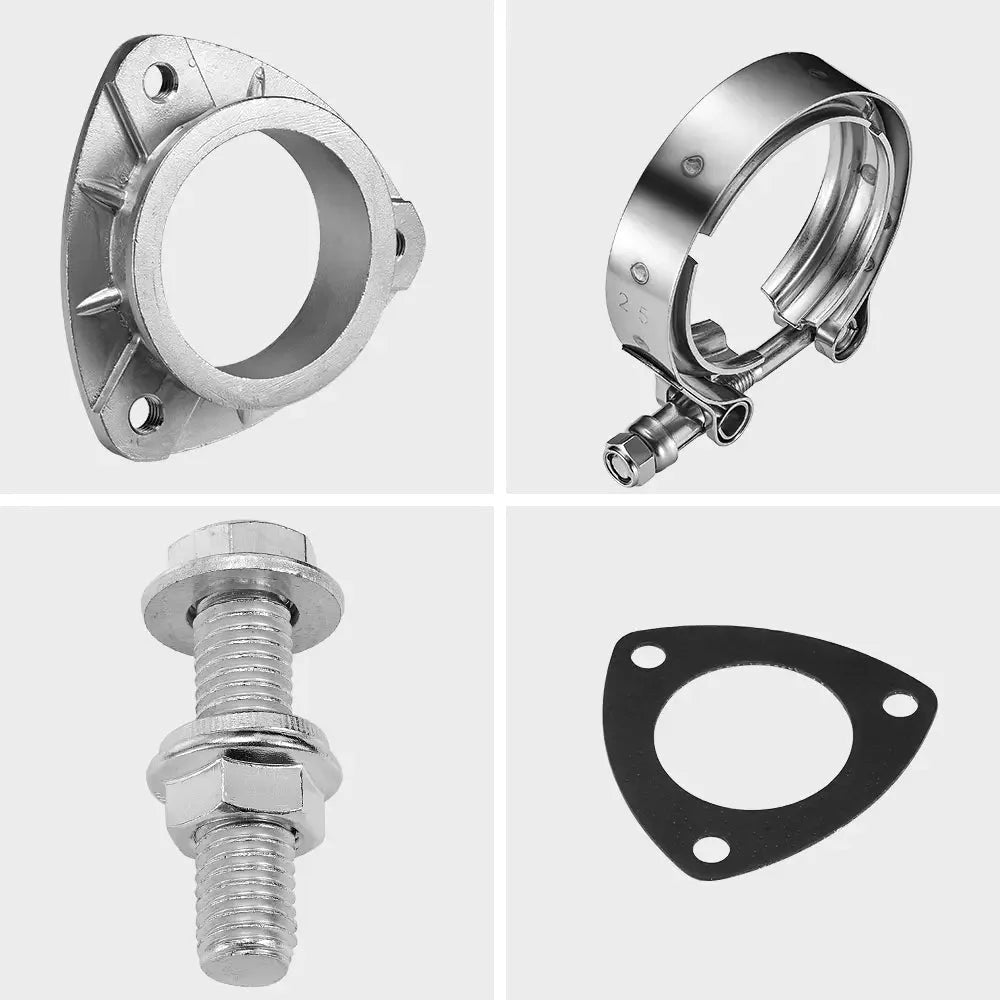

• 2 X Stainless Steel Flange Adaptor
• 2 X Aluminum V - Band Clamp
• 4 X Flange Gaskets
• 2 X Set of Bolts with Lock Washers and Nuts

Important Information:

➤Carefully read these instructions before installing your Electric Exhaust Cutout System. If you are not qualified or experienced at performing this type of installation, it is highly recommended that you have the Electric Exhaust Cutout System installed by a qualified automotive mechanic or exhaust shop. These instructions contain warnings that must be observed otherwise your vehicle could be rendered unsafe and not street legal. State and Federal regulations concerning Emissions, Noise Levels, and Safety Standards should be checked in your area.

➤Never Install this product in front of the catalytic converters, it is illegal. Never Install the Electric Exhaust Cutout System upstream of any Oxygen Sensors if so equipped. If not adhered to, a check engine light may occur which could alter the emissions.

➤Installation Instructions for Electric Exhaust Cutout:

The Electric Exhaust Cutout System is rated up to 800 degrees for short periods of time. To ensure longevity the electric exhaust cutout should be installed as far away from the headers as possible but no less than 18" from the collectors.

(1) While mounting and installing supplied polished exhaust cut out piping, confirm the "Y" shaped portion of the exhaust flows in the direction as the airflows over and under the car. Mount the pipe in such a manner as to create the most ground clearance possible.

(2) The exhaust cutout is designed to take the place of approximately 9.68" (246mm) of straight pipe in the exhaust system.

(3) Once you have found a suitable location, measure out 9.68" and mark the pipe where you plan to make your cut.

(4) Measure the distance between the two marks again, to ensure accuracy and re - mark if needed. Remember you can only cut once, so measure twice, cut once!

(5) Before making any cuts it is also a good idea to lift the exhaust cutout into place to ensure there is adequate clearance between the cutout and other components.

(6) Using a reciprocating saw or other suitable saw/ tool, cut the exhaustat the marks we made in the previous steps.

(7) File away any burrs or sharp uneven edges on the stock pipes to help create a strong leak - free connection.

(8) Welding the Y - pipe to the exhaust pipe. Please note the angle to ensure that there is ample clearance for the motor and Y - pipe.

(9) Complete the assembly of the valve and downpipe.
