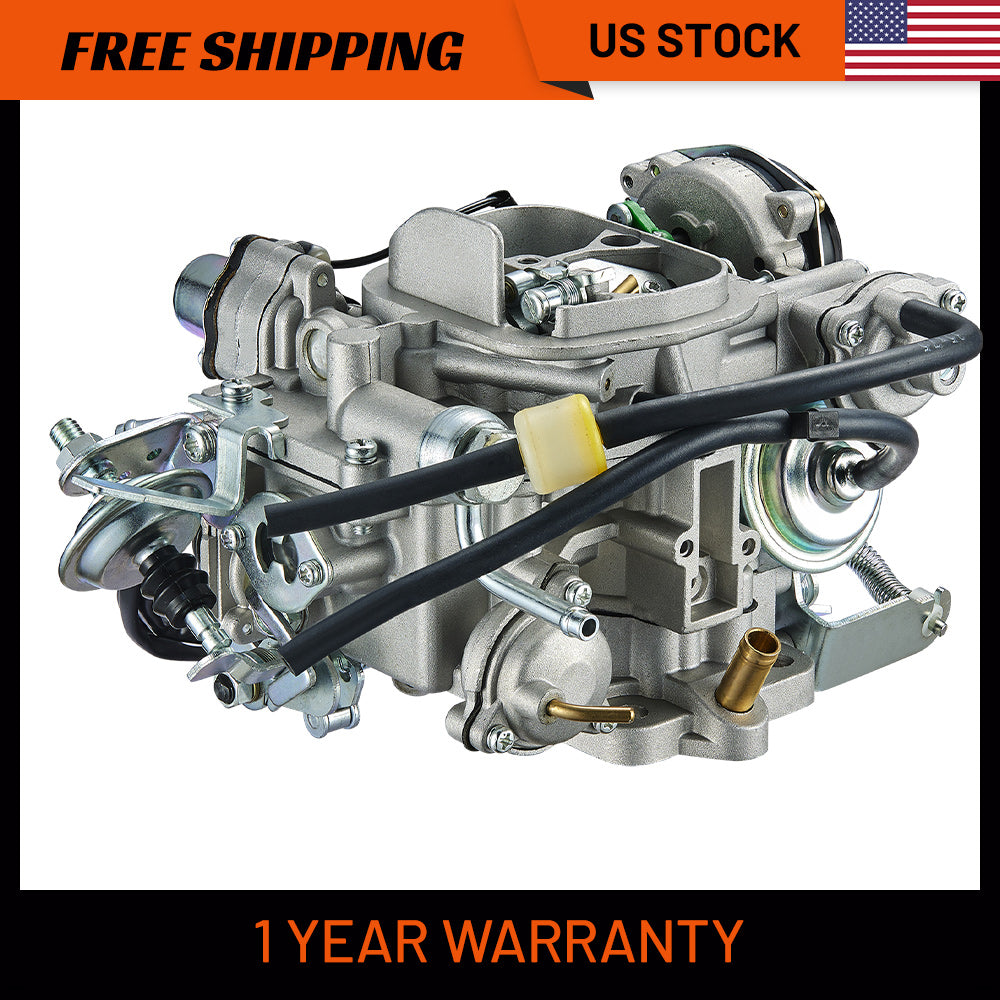

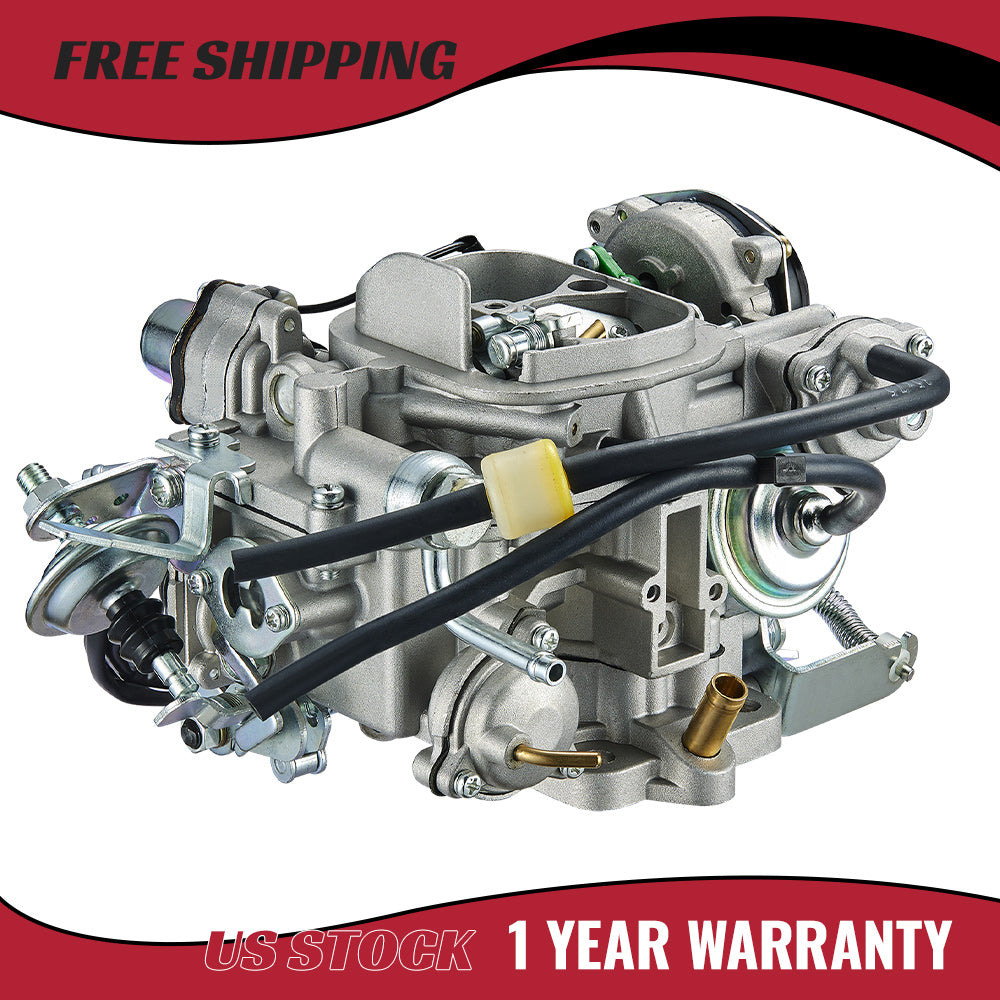

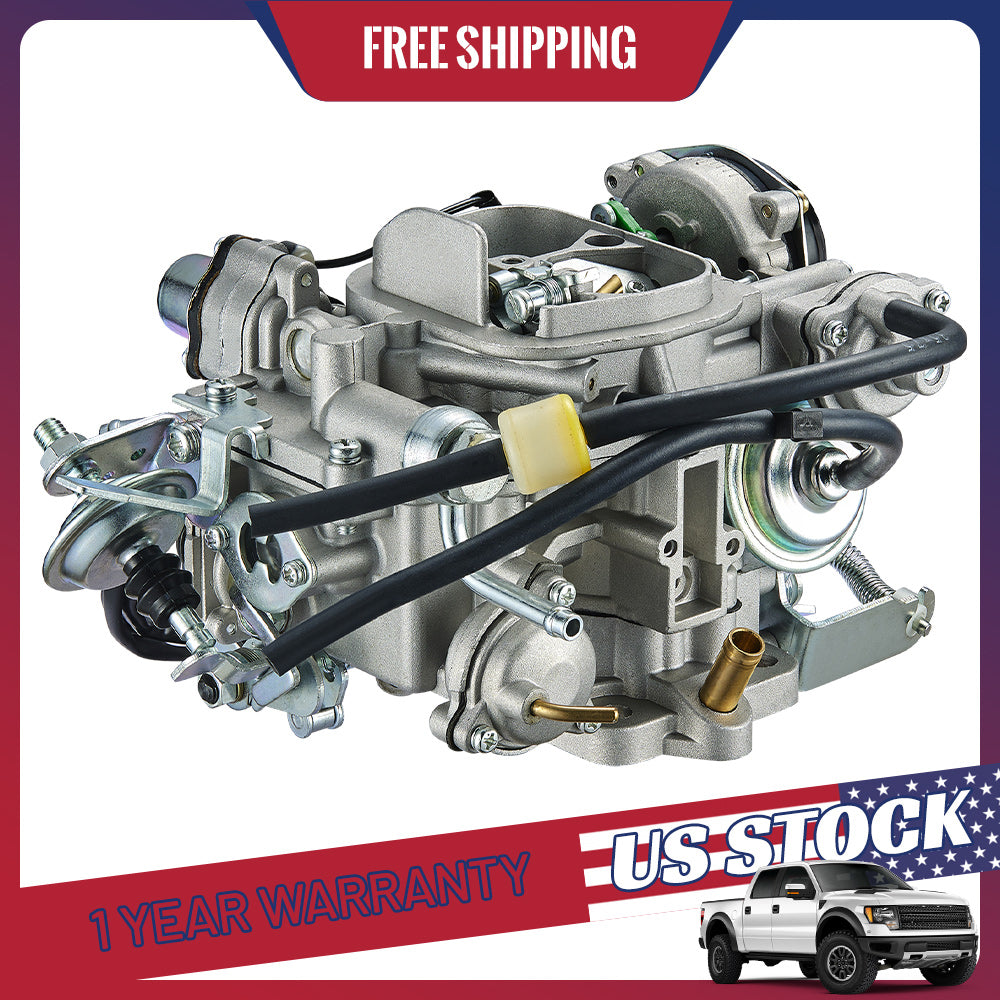

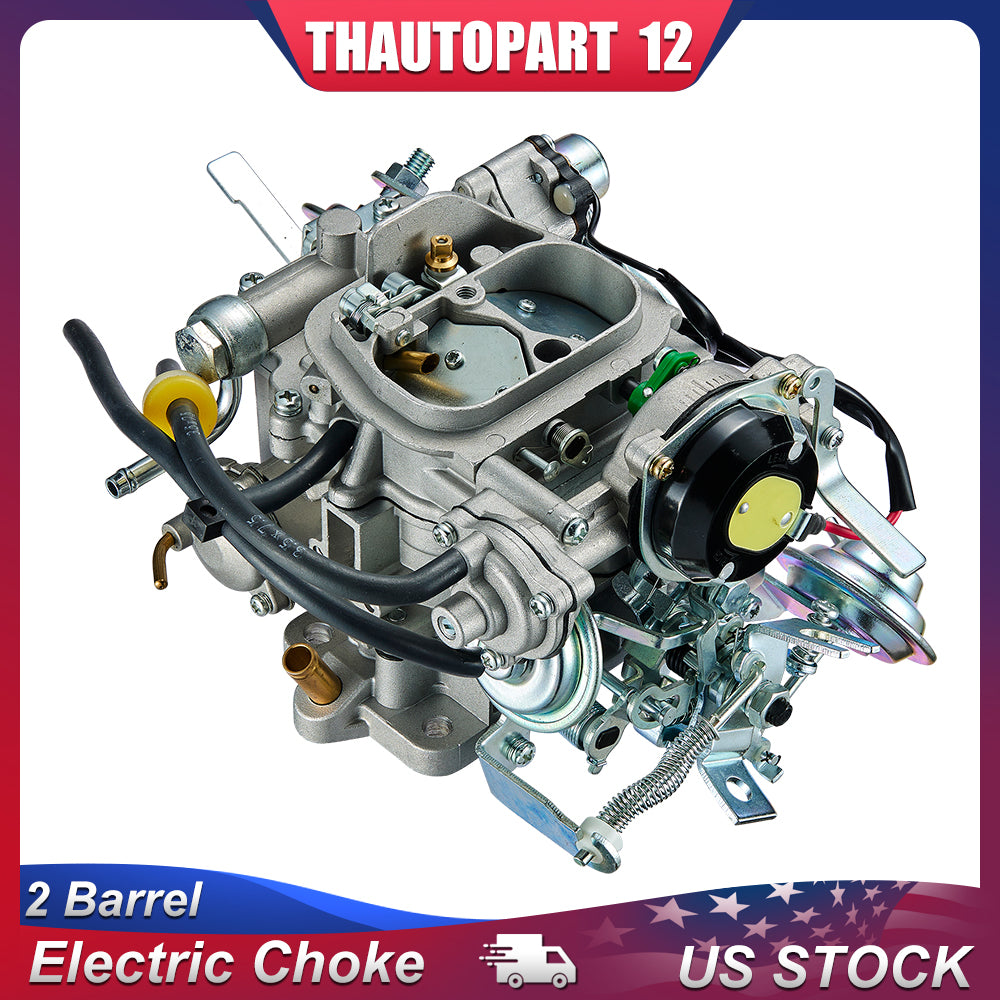

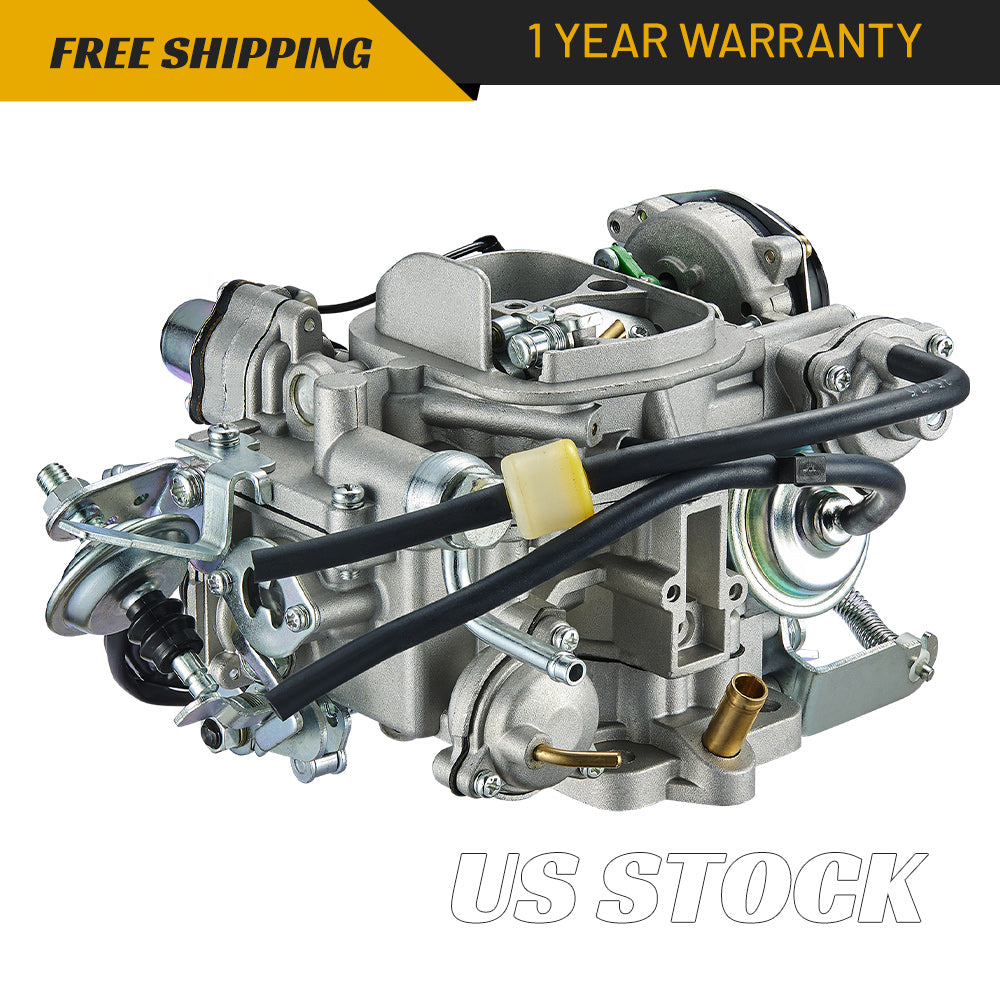

SPEEDWOW Carburetor CARB 2 Barrel 21100-35463 for Toyota 22R Engine Pickup 4Runner Celica Cu Carburetor Kit Electric Choke

➤【Applicable Vehicle】：

■1988 - 1990 Compatible With Toyota Pick up 2.4L 2366CC l4 GAS SOHC Naturally Aspirated

⚠️PLEASE NOTE⚠️:

⚠️■Walmart's Garage Auto Parts Fitment may not be 100% accurate.

⚠️■Please check your owner's manual or the original Factory OE, if you don't sure whether the item fit your vehicle or not.

➤APPLICABLE OEM PART NUMBER

Powerful power and fuel efficiency

★Original factory OE

•21100-35463,

•21100-35570,

•TOY-507,

•2110035463,

•2110035570

★Size:

- Air Inlet Bore Size: 32mm × 40mm

- Measurement of Base Plate: 97(max)mm× 50(max)mm

- Venturi Diameter: 26mm× 40mm

➤CARBURETOR ASSEMBLY:

■1. Assemble the upper body and lower body of the carburetor.

Care should be taken to install the gasket when operating.

■2. Install the idle speed fluctuation compensator.

Care should be taken to install the gasket and.

Shaped ring to prevent air leakage and loss of compensation.

■3. Install the idle speed shut-off valve.

★First, put the needle valve and spring into the carburetor upper body hole, and set a good seal on the idle speed shut-off valve.

★Then install it to the carburetor and tighten it.

■4. Install the carburetor small throat and each quantity hole.

■5. Install the float and adjust the oil level of the float chamber.

■6. Connect the upper and lower body of the carburetor, install the damper puller and vacuum hose, connect the fast idle speed puller and accelerator pump piston, etc.

■7. Adjust the throttle opening, fast idle mechanism and engine idle speed.

■8. Adjustment of the operating mechanism, throttle manipulation mechanism, so that the throttle lever reaches the fully open throttle position.

⚠️⚠️⚠️➤Notice:

■1. Impurity in fuel may cause clogging in the carburetor, please use the clean fuel to ensure the carb work normally, please clean the automobile oil circuit and air filter before you install the carburetor

Please compare carefully the pictures provided to your part before buying.

■2. Please confirm your old part number matches up with one of the part numbers above

■3. Professional installation is highly recommended (No Instruction Included)
